Integrated Nylon Gear

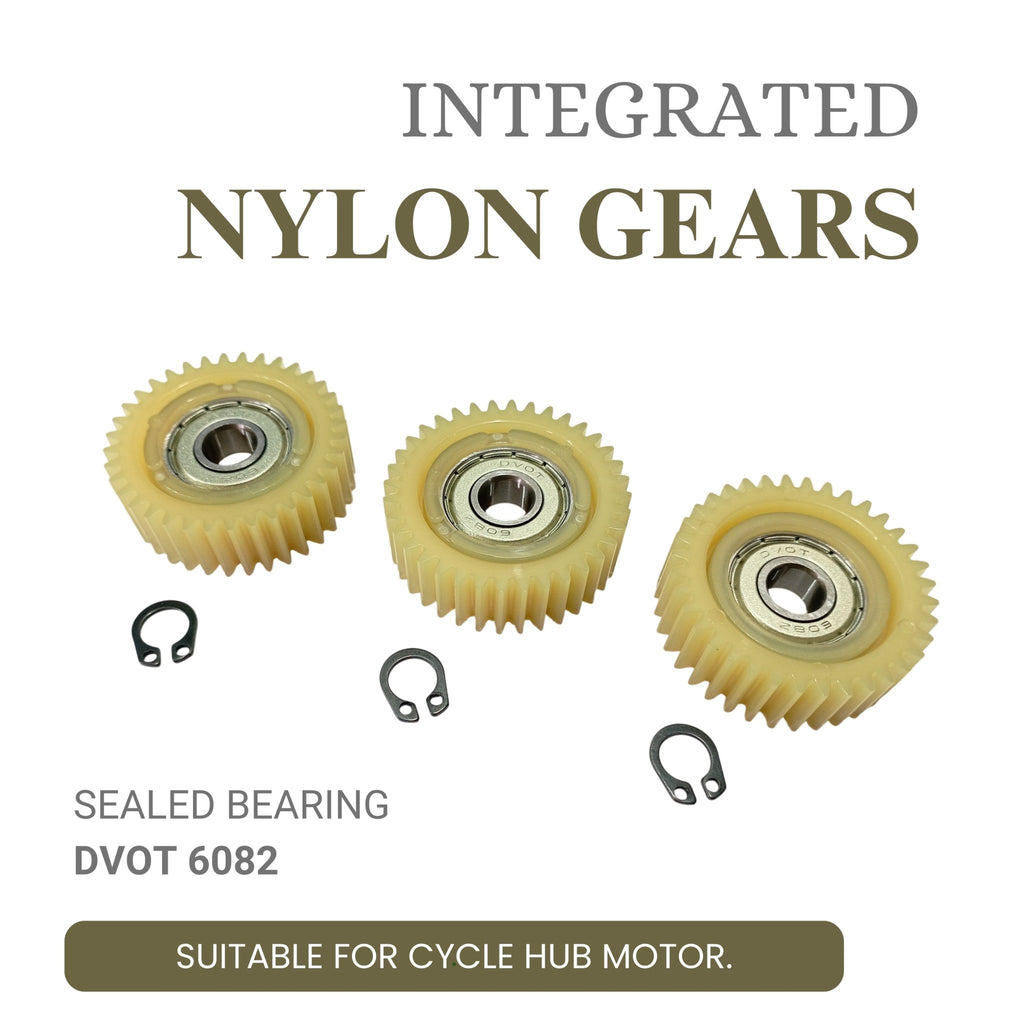

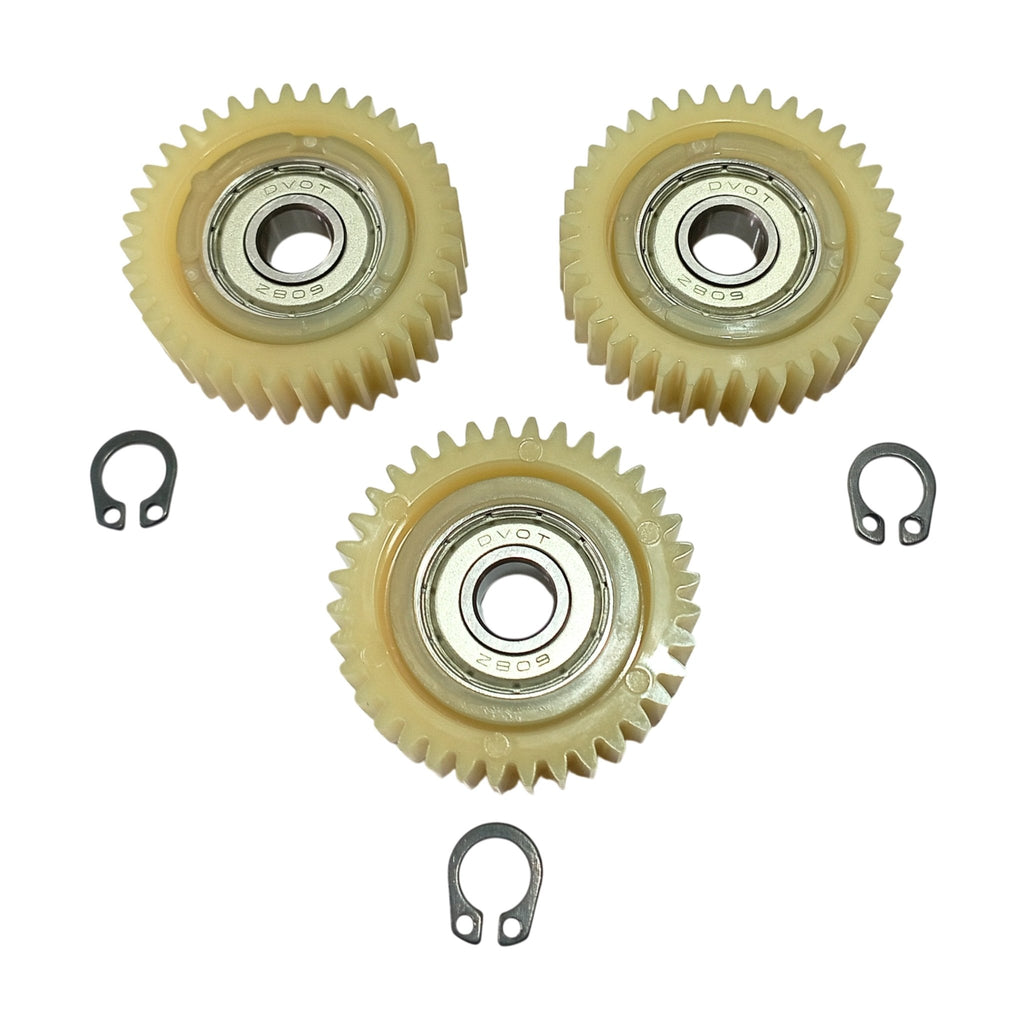

Three long-lasting nylon gears with locks are included in this Integrated Nylon Gear Set, which is intended for 250W–350W e-bike hub motors. Each gear features 36 precise teeth, a diameter of 38 mm, a thickness of 12 mm, and sealed DVOT 6082 bearings for dust and noise reduction. It guarantees dependable torque transfer, wear resistance, and simple updates for electric cycles because it is designed for up to 20,000 life cycles.

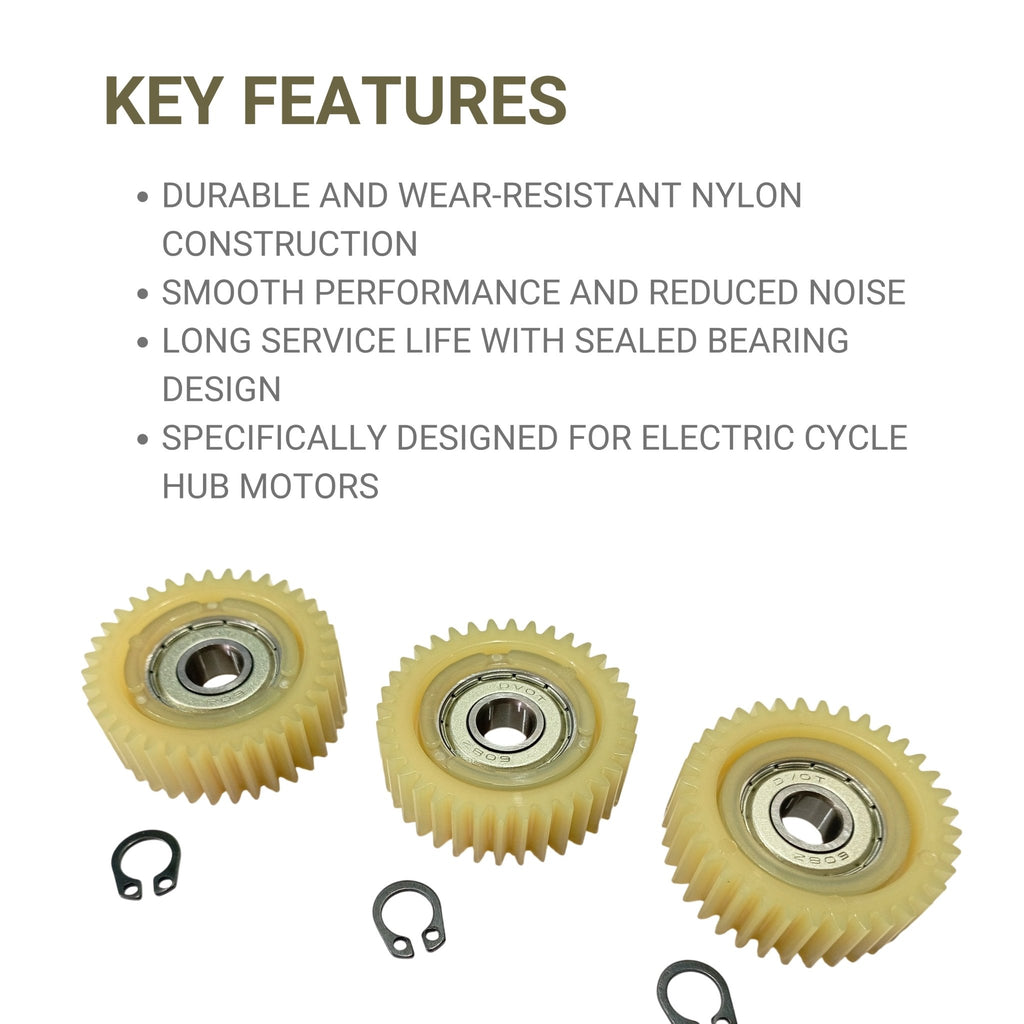

Features :
- Three nylon gears with built-in locks
- 36 teeth for accurate transmission of torque
- DVOT 6082 sealed bearings for seamless rotation
- Superior nylon for reduced noise and wear resistance
- 20,000 life cycles to ensure long-term dependability
- Small, 38 mm in diameter and 12 mm thick

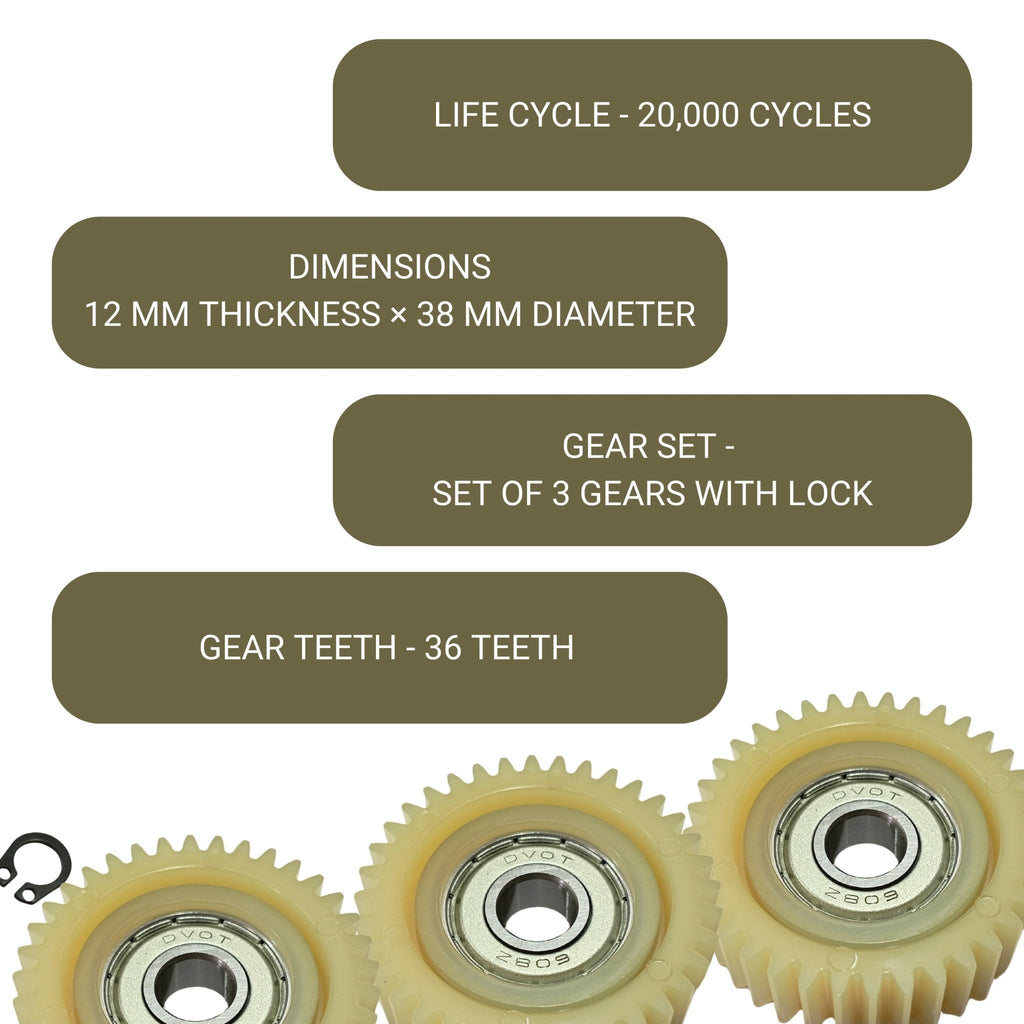

Specification :
- Teeth: 36T
- Dimensions: 12mm thickness x 38mm diameter
- Compatibility: 250W-350W e-bike hub motors
- Bearings: Sealed DVOT 6082
- Life Cycles: Up to 20,000
- Material: High-durability nylon
- Weight : 60gram Approx
Applications :
- Repairs and replacements for e-bike hub motors
- Improvements in electric cycle performance
- Upkeep and repairs for cycle motors
Usage :
- To reach the gear housing, disassemble the hub motor.
- Install a new set of gears with locking after removing the old ones.
- Adjust tooth alignment and fasten bearings.
- Before reassembling, check rotation for smooth engagement.
